Dynamic M7 Dust Monitor

Continous real time reliable dust detection and measurement for fabric dust collectors or any industrial dust collection system using a baghouse collector.

Download spec Distribution Enquiry

Key features

——  Using advanced electrodynamic technology, the Dynamic M7 is a highly sensitive monitor designed for prompt and accurate dust leakage detection, optimising the performance of dust collection systems.

  • Operating range: 0-10mg/m3 or 0-500mg/m3.
  • Pre-set measurement ranges for receiving early warning prompt.
  • Both analogue and RS485 output for easy reporting.
  • Robust and durable construction: high temperature resistance, correction resistance and anti-adhesion.
  • Easy installation: requiring no critical alignment or the need to maintain clean optical surfaces.
  • Low maintenance: no consumable spare parts required.
Download spec
  • Dynamic M7 can be used in waste incarnation power plant

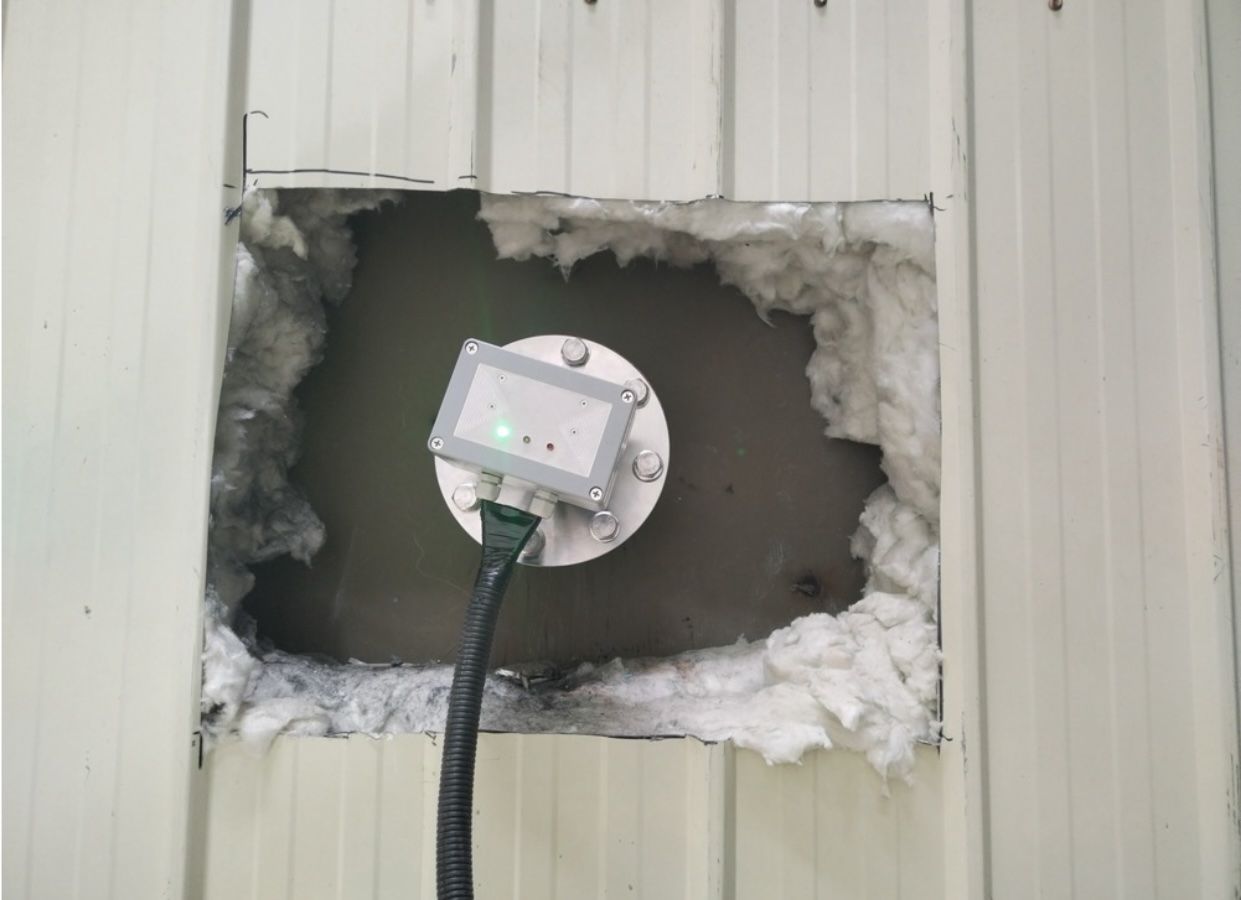

  • A Dynamic M7 Dust Monitor is installed at the exit of the waste bag cabin

Applications

——  For a wide range of industries where fabric dust collectors or baghouses are used such as power plants, cement plants, woodworking, pharmaceuticals, metallurgy, food and chemical industry.

Metallurgy

Steel plants, metal smelters, foundries, and more.

Mining

Cement plants, asphalt plants, lime plants, mining plants, gypsum plants, brick kilns, coking plants, etc.

Chemical Industry

Plastic factories, fertiliser factories, pharmaceutical factories, rubber factories, tire factories, and more

Food Industry

Cereal processing, coffee production, milk powder production, flour mills, starch processing, tobacco factories, and more.

Dynamic M7 has a wide range of applications such as mining, waste incarnation power plants, chemical plant.

Energy Sector

Coal-fired power plants, waste incineration power plants, oil refineries, natural gas facilities, etc.

Wood Industry

Pulp and paper mills, flooring manufacturers, cardboard production facilities, and more..

See Dynamic M7 in action Distribution Enquiry
Advanced Technology for

Better Dust Leakage Detection

Built upon the foundation of dynamic charge technology, Dynamic M7 directly measures dust concentration by detecting the frictional charge produced when particles collide with the probe rod. This robust and established methodology ensures accurate and precise monitoring, providing confidence in the data collected for effective dust management strategies.

Unaffected by Dust Accumulation

The measurements are not influenced by the accumulation of dust and particulate matter on the sensor probe rod. This ensures consistent and reliable performance over time.

Optimised Data Processing

Dynamic M7 employs optimized data processing technology to mitigate the impact of changes in smoke flow rate on concentration measurement. This ensures accurate and stable readings even in dynamic operating conditions.

Low Detection Limit and Sensitive Response

Dynamic M7 can detect even slight numerical changes in dust concentration immediately. This makes it ideal for detecting medium and low-level dust leakage as well as serious bag failure in dust collectors.

Wide Measuring Range


Dynamic M7 offers a wide measuring range of 0-10 mg/m3 or 0-500 mg/m3, providing flexibility to monitor various dust concentration levels effectively.

Easy installation & set up

Dynamic M7 dust monitor can be installed at the outlet of various types of dust removal equipment such as bag dust collectors, cartridge filters, cyclones, etc.

  1. Installation
  2. Determine base value
  3. Set warning values
  1. Real-time monitoring and early warning
  2. Analyse and maintain
Check out Dynamic M7 in action

FAQs

Dynamic M7 can be used for a wide range of industries where fabric dust collectors or baghouses are used such as power plants, cement plants, woodworking, pharmaceuticals, metallurgy, food and chemical industry.

Using advanced electrodynamic probe technology, Dynamic M7 directly measures dust concentration by detecting the frictional charge produced when particles collide with the probe rod. This robust and established methodology ensures accurate and precise monitoring, providing confidence in the data collected for effective dust management strategies.

0-10mg/m3 or 0-500mg/m3.

Both analogue and RS485 output.

No

Get in touch

For more information about the Dynamic M7 or if you’re interested in becoming our distribution partner, please contact us.
